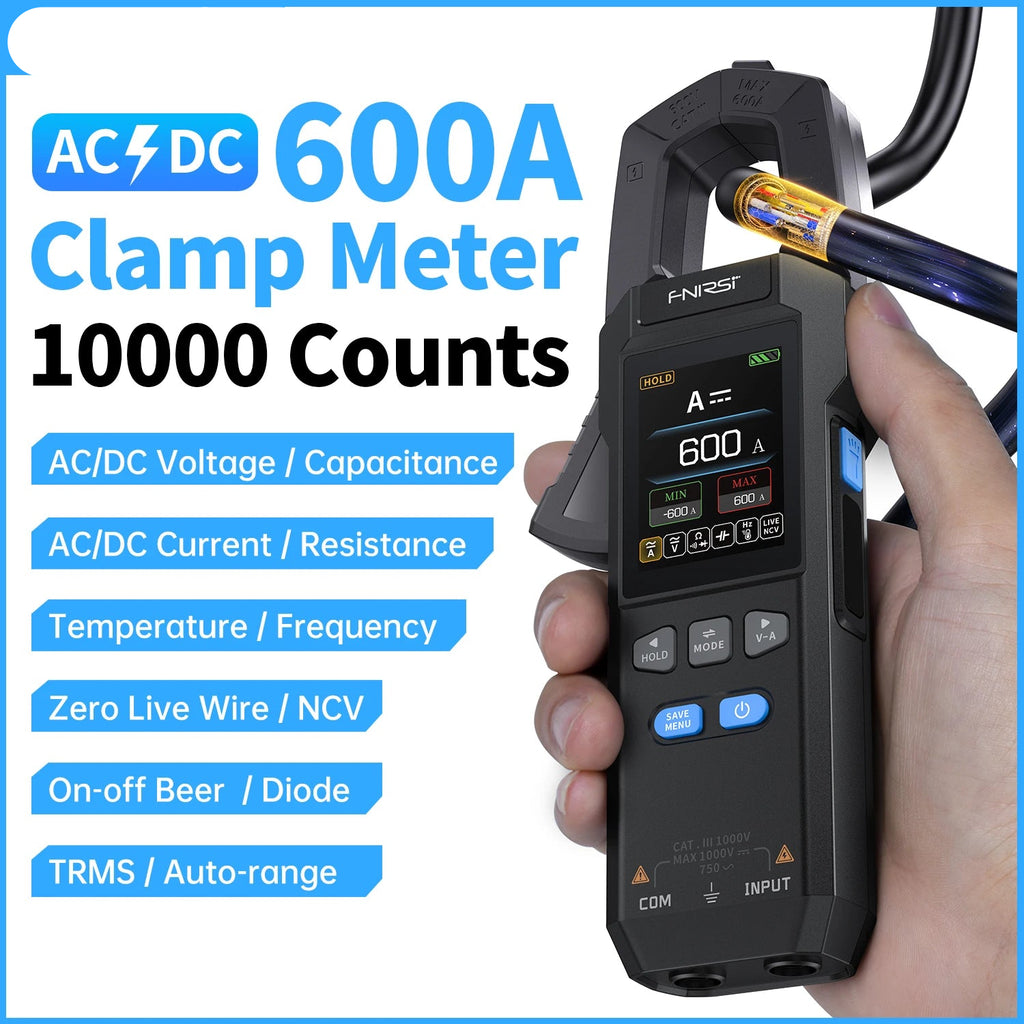

DMC-100 10000 Counts Clamp Meter AC DC Current Digital Multimeter

 It can precisely measure AC/DC voltage, AC/DC current, and is also capable of testing continuity, capacitance, frequency, resistance, diodes, temperature, NCV (Non-Contact Voltage), and live wires. This device is suitable for use in engineering, laborato-ries, vehicle maintenance, and household electrical repairs across various electronic fields.

The DMC-100 is equipped with a 2.0-inch full-color TFT display with a high resolution of 240*320. The new UI interface design, along with features such as data curves, data storage, and power measurement mode, enrich your user experience, making it easier to read and operate in various scenarios.

Main Specifications of the Device

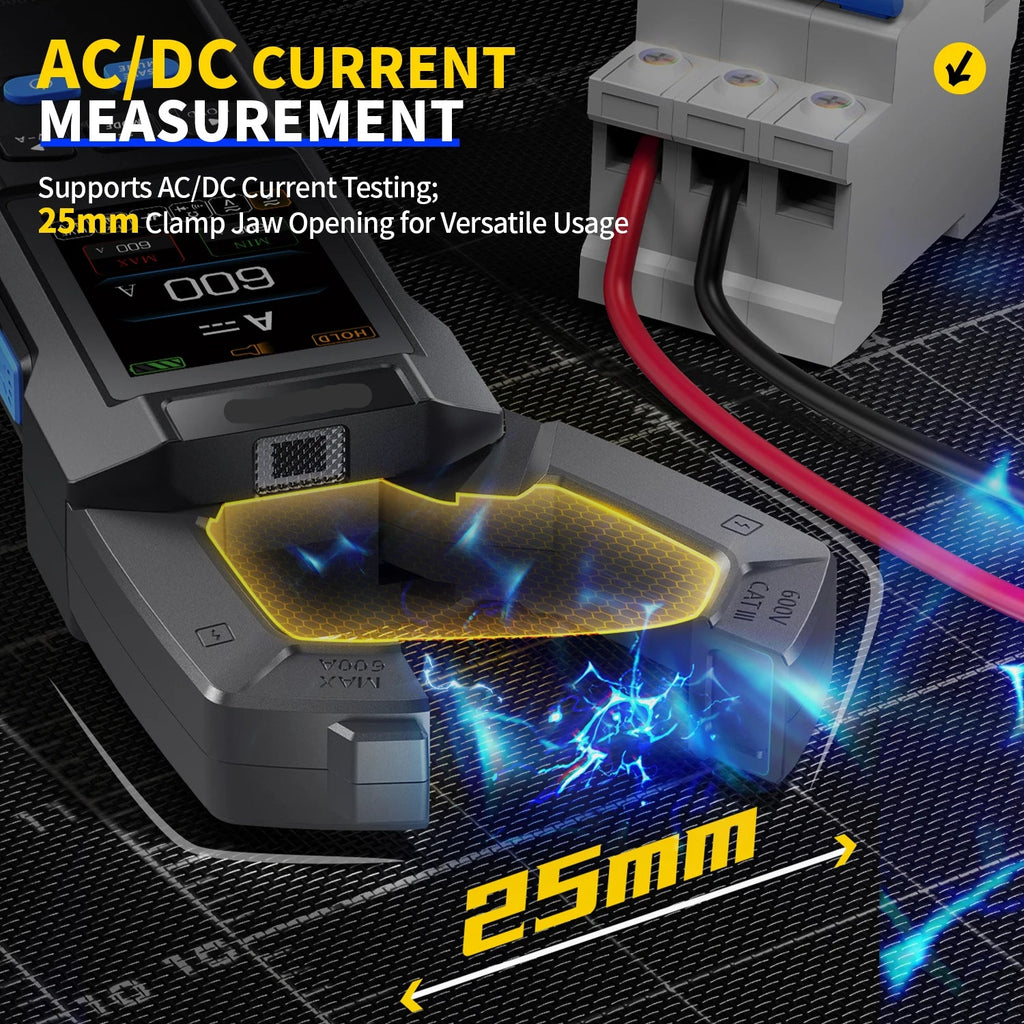

Maximum size of jaws: 25mm

Screen: 2.0'' TFT color screen

Screen resolution：240*320 pixels

Battery capacity: 3.7V, 1500mAh battery

Charging specification: USBType-C, 5V/1A

Product weight: 194g

Product size: 193x74x32mm

Measurement parameters
DC voltage: 9.999V/99.99V/999.9V

AC voltage: 9.999V/99.99V/750.0V

DC current/AC current: 99.99A/600.0A

Resistance: 99.99MΩ/9.999MΩ/999.9KΩ/99.99KΩ/9.999KΩ/999.9Ω

Capacitance: 9.999mF/99.99mF/999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF

Frequency: 9.999MHz/999.9KHz/99.99KHz/9.999KHz/999.99Hz/99.99Hz/9.999Hz

Temperature: -55~1300℃/-67~2372℉

Diode Measurement: √

On-off test: √

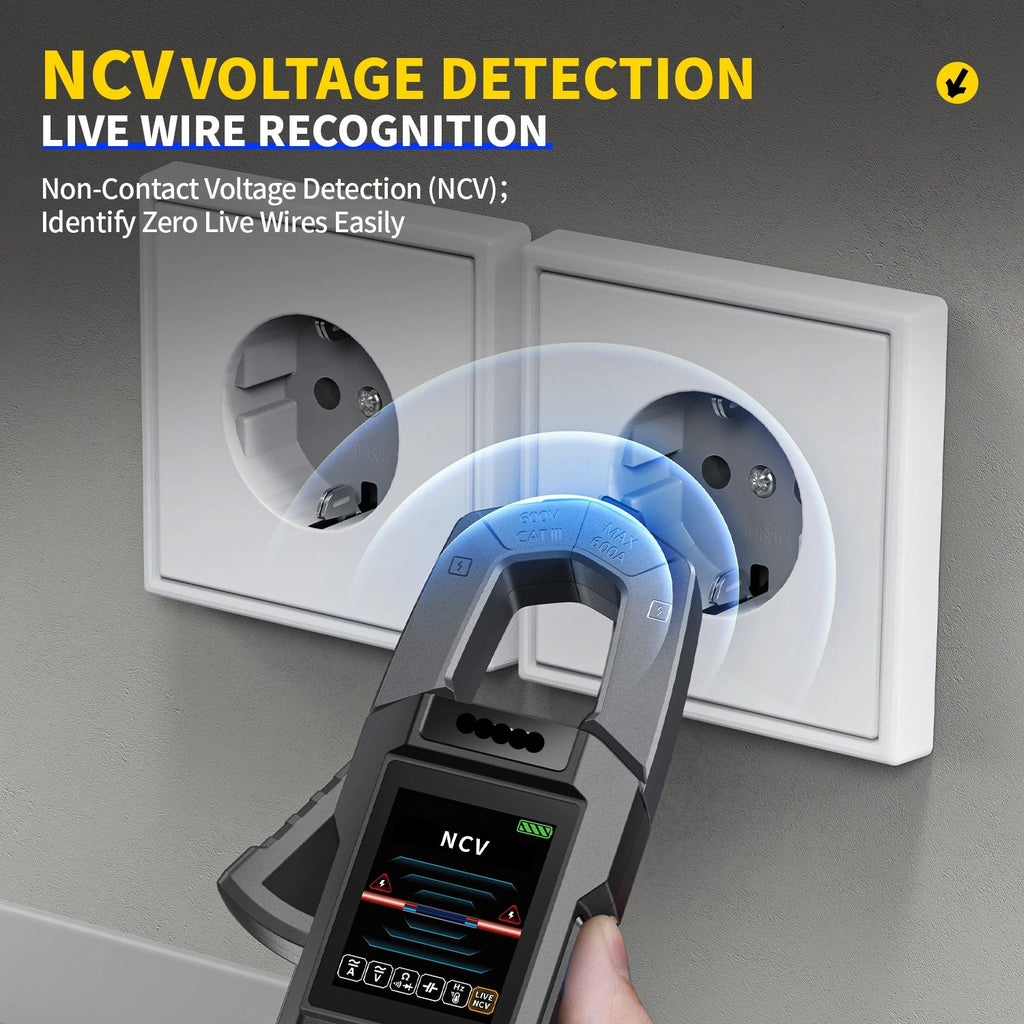

Non-Contact Voltage Check (NCV): √

Zero Fire Wire Check: √

Other Functions
Measuring Mode 1: general measurement

Measuring Mode 2: waveform display

Measuring Mode 3: power measurement

Measurement gear: manual adjustment

Torch: Support

Data Zeroing: Support

Maximum/Minimum Value: Support

Waveform display: Support

Power Calculation: Support

Data Hold: Support

Data Storage and Viewing: Up to 30 groups of data

Language: Chinese/English

Brightness Adjustment: 10-speed adjustment

Temperature unit: ℃/℉

Auto Power Off: OFF/5min/15min/30m

Firmware Upgrade: Support
